Machuca Fittings, located in Kuala Lumpur, Malaysia, stands out as a top manufacturer and supplier of high-performance Monel K500 pipe fittings, serving clients around the globe, including those in the Midland, UK market. Known for its precision engineering and unwavering commitment to quality, Machuca Fittings offers a wide array of products tailored to meet the rigorous demands of industrial applications. Thanks to advanced manufacturing techniques and strict quality control measures, the company guarantees durable, corrosion-resistant fittings that perform reliably even in tough environments. Their expertise ensures that Monel K500 fittings integrate seamlessly into various piping systems, serving both commercial and specialized industries with exceptional efficiency.
Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79
Size Seamless 1/2″ – 10″ , Welded 1/2″ – 48″
Type (Seamless & 100% X-Ray Welded, Fabricated)
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Grade Monel K500 Pipe Fittings UNS (N05500), DIN (2.4375)
Monel K500 pipe fittings are primarily made up of nickel (about 63%) and copper (28–34%), with small amounts of iron, manganese, and aluminum added to boost strength and hardness. These alloys boast impressive mechanical properties, such as high tensile strength, excellent fatigue resistance, and remarkable toughness. Monel K500 is particularly valued for its ability to maintain structural integrity in extreme temperatures and corrosive settings, making it a great choice for marine and chemical applications. The material also shows outstanding resistance to stress corrosion cracking and is easy to fabricate while keeping its dimensional stability, ensuring long-lasting reliability in critical situations.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 115000 , MPa – 790 | Psi – 160000 , MPa – 1100 | 20 % |
Machuca Fittings is a leading supplier of Monel K500 pipe fittings in Kuala lumpur, Malaysia. We offer an extensive range of Monel K500 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Monel K500 pipe fittings from Machuca Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

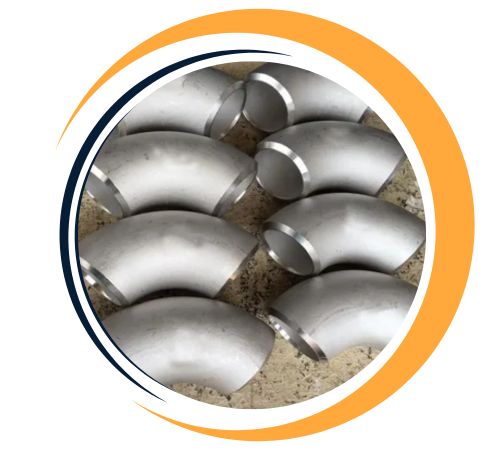

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Monel K500 Pipe Fittings offer exceptional advantages, including superior corrosion resistance, making them ideal for marine and chemical industries. They combine high strength and toughness with excellent resistance to stress corrosion cracking and erosion in harsh environments. Their non-magnetic properties and outstanding thermal conductivity make them versatile for diverse applications. Monel K500 fittings maintain mechanical properties even at sub-zero and elevated temperatures, ensuring durability and reliability. Additionally, their ease of machining and fabrication allows for custom designs, meeting various industrial needs with long-term performance and low maintenance requirements.
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Yes, custom sizes for Monel K500 pipe fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com.
Monel K500 pipe fittings find extensive use in industries that demand high corrosion resistance and mechanical strength. They are perfect for marine engineering, chemical processing, desalination plants, and aerospace systems, where exposure to saltwater, acids, or high temperatures is a regular occurrence. These fittings are crucial in pipelines, valves, and other essential components, ensuring safety, durability, and efficient fluid transport. Moreover, Monel K500 is a preferred choice in the oil and gas sector, power generation, and offshore applications due to its remarkable resilience.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
