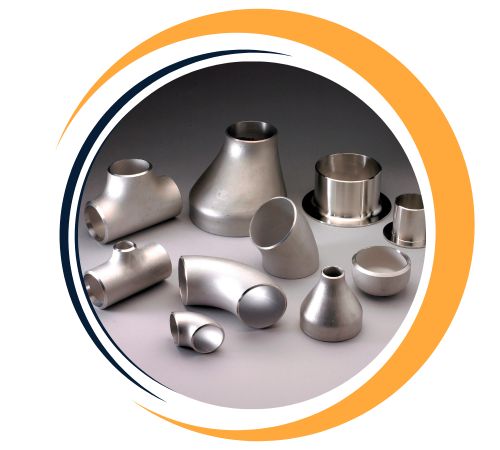

Machuca Fittings, located in Kuala Lumpur, Malaysia, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Alloy Steel F9 Forged Fittings. They cater to clients not just in Midland, UK, but also across various global markets. With a strong focus on precision engineering, durability, and adherence to international quality standards, Machuca Fittings is dedicated to delivering dependable products that meet the needs of demanding industries. The company excels in crafting forged fittings that guarantee leak-proof connections, outstanding strength, and remarkable resistance to high pressure and temperature. Supported by state-of-the-art manufacturing facilities and rigorous quality control, Machuca Fittings offers tailored solutions for the oil, gas, chemical, and power generation sectors.
| Specification : | ASTM A182 F9 Forged Fittings |
|---|---|
| Size | Threaded Fittings = ½” – 4” |
| Pressure Rating | Threaded Fittings = Class 2000, Class 3000, Class 6000 |
| Type Of Pipe systems | 45 Deg Elbow, Equal tee, Full Coupling, Reducing Tee, 90 Deg Elbow, Half Coupling, Street Elbow, Bull Plug, Boss, Union (Male/Female), Lateral Outlet, 45 Lateral Tee, Equal Cross, Pipe Cap, Branch Outlets, Swage Nipple. |
| Thread Connections | ASME B16.11 (Socket Welding and Threaded) Fittings, MSS-SP-83 (Class Unions) Fittings, ASME B16.3 (Malleable Iron Fittings) Fittings, ASME B16.4 ( Gray Iron Fittings) Fittings, ASME B16.39 (Malleable Iron Unions) Fittings, ASME B16.34 (Valves — Flanged) Fittings, ASME B16.39 (Malleable Iron Pipe Unions, 150#, 250#, Or 300#) Fittings. |
| Standards | ASME B16.11 (American Standard), Bs3799, MSS SP 79, JIS B2302, MSS-SP-97 (Threadolet), MSS-SP-83 (Union), ASME B36.19 (Nipple) |
| Types Of Thread | NPT Fittings, BSPP Fittings, BSPT Fittings, PF Fittings, PT Fittings, MPT |
| Applications | Oil and Gas Chemical Power station Water Pipeline Noncritical Applications Fire Protection |
| Advantages Of | Simple Usage Easy installation Economic as cheaper |
Alloy Steel F9 Forged Fittings are primarily made up of chromium, molybdenum, and a well-balanced blend of carbon and manganese, which provides them with exceptional strength and toughness. They boast impressive creep resistance, along with high tensile and yield strength, ensuring durability even in extreme conditions. These fittings maintain their shape at elevated temperatures while effectively resisting wear, oxidation, and damage from stress. Their mechanical properties include remarkable hardness, good elongation, and impact strength, making them a reliable choice in challenging and corrosive environments. This unique combination of chemical makeup and mechanical efficiency guarantees long-lasting performance and safety in industrial applications.
| Gr | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F9 Forged Fittings | 0.15 | 0.3 – 0.6 | 0.5 – 1 | 0.03 | 0.03 | 8 – 10 | 0.9 – 1.1 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F9 Forged Fittings | 380 | 585 | 20 |
Machuca Fittings is a leading supplier of Alloy Steel F9 Forged Fittings in Kuala lumpur, Malaysia. We offer an extensive range of Alloy Steel F9 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Alloy Steel F9 Forged Fittings from Machuca Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Alloy Steel F9 Forged Fittings offer numerous advantages, including exceptional strength, high-temperature stability, and corrosion resistance, making them ideal for demanding industrial applications. Their chromium and molybdenum content enhances their ability to withstand harsh environments, including high-pressure and high-temperature conditions. The forged construction ensures high mechanical strength and durability, providing leak-proof connections and long service life. These fittings also offer resistance to oxidation and wear, reducing maintenance costs. Alloy Steel F9 Forged Fittings are essential for industries like oil, gas, petrochemical, and power generation, ensuring reliable performance in critical systems.
Yes, custom sizes for Alloy Steel F9 Forged Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com.
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
| ASTM A182 F9 Forged Fittings | K90941 | 1.7386 | 9Cr-1Mo |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A | Center to End 45 Deg Elbow C | O.D. of Band H | Min. Wall Thick. G | Length of Thread. Minimum (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Alloy Steel F9 Forged Fittings find extensive use in industries that demand superior strength and durability under harsh conditions. They are commonly utilized in oil and gas refineries, chemical processing plants, power generation facilities, and thermal stations for high-pressure piping systems. These fittings play a crucial role in steam boilers, heat exchangers, and turbine systems, where resistance to heat, stress, and corrosion is vital. Their reliability makes them ideal for petrochemical plants, shipbuilding, and offshore drilling operations. With the capability to endure fluctuating temperatures and pressures, they are a trusted choice for various industrial applications.
