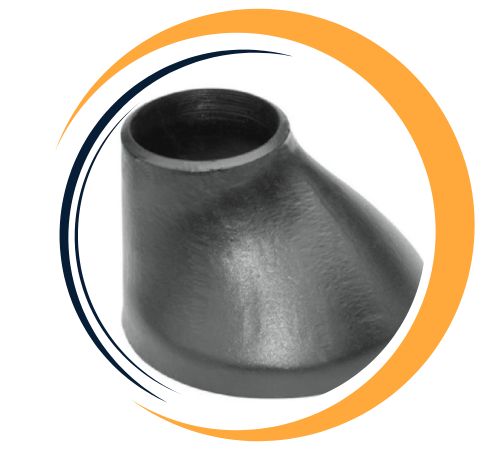

Machuca Fittings, a reputable manufacturer and supplier based in Kuala Lumpur, Malaysia, proudly offers top-notch Alloy Steel WP11 Buttweld Fittings. These fittings are crafted to deliver exceptional durability, strength, and efficiency, especially in demanding piping applications. Adhering to ASTM A234 and ASME standards, you’ll find these fittings in various forms, including elbows, tees, reducers, caps, and crosses. Designed for secure, leak-proof connections, WP11 buttweld fittings are well-known for their ability to handle high pressure and elevated temperatures, making them a go-to choice for critical service industries worldwide.
| Specifications | : | ASTM A234 / ASME SA234 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | : | Seamless / Welded / Fabricated |
The Alloy Steel WP11 Buttweld Fittings are made from a blend of chromium, molybdenum, and carbon, which gives them impressive strength, toughness, and resistance to oxidation and creep at high temperatures. With a tensile strength that ranges from 415 to 585 MPa and a minimum yield strength of 205 MPa, they promise robust mechanical performance and a long service life. Their well-balanced chemical composition ensures excellent weldability, ductility, and resistance to thermal stress.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP11 | 0.05-0.2 | 0.3-0.8 | 0.5-1 | ≤0.030 | ≤0.030 | 1-1.5 | 0.44-0.65 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP11 | 415-585 | ≥205 | ≥20 |
Machuca Fittings one of the largest suppliers of Alloy Steel WP11 Buttweld Fittings in Kuala lumpur, Malaysia. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Alloy Steel WP11 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Alloy Steel WP11 Buttweld Fittings in the Malaysia.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP11 Buttweld Fittings from Machuca Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| ASTM A234 WP11 Fittings Temperature Ratings | Types Of Pressure Ratings Class | ||||
|---|---|---|---|---|---|
| Class 150# | Class 300# | ||||
| 1/4 – 1 (Inch) | 1 1/4 – 2 (Inch) | 2 1/2 – 3 (Inch) | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Alloy Steel WP11 Buttweld Fittings offer numerous advantages, making them ideal for high-pressure, high-temperature applications. Their composition, featuring chromium and molybdenum, enhances their resistance to oxidation, corrosion, and wear, ensuring long-term durability. WP11 fittings have excellent weldability, strength, and thermal stability, which makes them suitable for demanding industries such as power generation, petrochemical, and oil & gas. They provide superior resistance to thermal fatigue and stress, reducing the risk of failure in extreme conditions. Additionally, WP11 Fittings offer minimal maintenance and extended service life, ensuring cost-effectiveness and reliable performance.
| Normal Size Of Pipe (DN) | Schedule Number | Outer Daimeter In inch millmeter | Wall Thickness inch millmeter | Mass lb/ft kg/m |
|---|---|---|---|---|
| 1/8 6 | 5S | 0.405 10.3 | … | … |
| 1/8 6 | 10S | 0.405 10.3 | 0.049 1.24 | 0.19 0.28 |
| 1/8 6 | 40S | 0.405 10.3 | 0.068 1.73 | 0.24 0.37 |
| 1/8 6 | 80S | 0.405 10.3 | 0.095 2.41 | 0.31 0.47 |
| 1/4 8 | 5S | 0.540 13.7 | … | … |
| 1/4 8 | 10S | 0.540 13.7 | 0.065 1.65 | 0.33 0.49 |
| 1/4 8 | 40S | 0.540 13.7 | 0.088 2.24 | 0.43 0.63 |
| 1/4 8 | 80S | 0.540 13.7 | 0.119 3.02 | 0.54 0.80 |
| 3/8 10 | 5S | 0.675 17.1 | … | … |
| 3/8 10 | 10S | 0.675 17.1 | 0.065 1.65 | 0.42 0.63 |
| 3/8 10 | 40S | 0.675 17.1 | 0.091 2.31 | 0.57 0.84 |
| 3/8 10 | 80S | 0.675 17.1 | 0.126 3.20 | 0.74 1.10 |
| 1/2 15 | 5S | 0.840 21.3 | 0.065 1.65 | 0.54 0.80 |
| 1/2 15 | 10S | 0.840 21.3 | 0.083 2.11 | 0.67 1.00 |
| 1/2 15 | 40S | 0.840 21.3 | 0.109 2.77 | 0.85 1.27 |
| 1/2 15 | 80S | 0.840 21.3 | 0.147 3.73 | 1.09 1.62 |
| 3/4 20 | 5S | 1.050 26.7 | 0.065 1.65 | 0.68 1.02 |
| 3/4 20 | 10S | 1.050 26.7 | 0.083 2.11 | 0.86 1.28 |
| 3/4 20 | 40S | 1.050 26.7 | 0.113 2.87 | 1.13 1.69 |
| 3/4 20 | 80S | 1.050 26.7 | 0.154 3.91 | 1.48 2.20 |
| 1 25 | 5S | 1.315 33.4 | 0.065 1.65 | 0.68 1.02 |
| 1 25 | 10S | 1.315 33.4 | 0.083 2.11 | 0.86 1.28 |
| 1 25 | 40S | 1.315 33.4 | 0.133 3.38 | 1.68 2.50 |
| 1 25 | 80S | 1.315 33.4 | 0.179 4.55 | 2.17 3.24 |
| 1-1/4 32 | 5S | 1.660 42.2 | 0.065 1.65 | 1.11 1.65 |
| 1-1/4 32 | 10S | 1.660 42.2 | 0.109 2.77 | 1.81 2.69 |
| 1-1/4 32 | 40S | 1.660 42.2 | 0.140 3.56 | 2.27 3.39 |
| 1-1/4 32 | 80S | 1.660 42.2 | 0.191 4.85 | 3.00 4.47 |
| 1-1/2 40 | 5S | 1.900 48.3 | 0.065 1.65 | 1.28 1.90 |
| 1-1/2 40 | 10S | 1.900 48.3 | 0.109 2.77 | 2.09 3.11 |
| 1-1/2 40 | 40S | 1.900 48.3 | 0.145 3.68 | 2.72 4.05 |
| 1-1/2 40 | 80S | 1.900 48.3 | 0.200 5.08 | 3.63 5.41 |
| 2 50 | 5S | 2.375 60.3 | 0.065 1.65 | 1.61 2.39 |
| 2 50 | 10S | 2.375 60.3 | 0.109 2.77 | 2.64 3.93 |
| 2 50 | 40S | 2.375 60.3 | 0.154 3.91 | 3.66 5.44 |
| 2 50 | 80S | 2.375 60.3 | 0.218 5.54 | 5.03 7.48 |
| 2-1/2 65 | 5S | 2.875 73 | 0.083 2.11 | 2.48 3.69 |
| 2-1/2 65 | 10S | 2.875 73 | 0.120 3.05 | 3.53 5.26 |
| 2-1/2 65 | 40S | 2.875 73 | 0.203 5.16 | 5.80 8.63 |
| 2-1/2 65 | 80S | 2.875 73 | 0.276 7.01 | 7.67 11.41 |
| 3 80 | 5S | 3.500 88.9 | 0.083 2.11 | 3.03 4.52 |
| 3 80 | 10S | 3.500 88.9 | 0.120 3.05 | 4.34 6.46 |
| 3 80 | 40S | 3.500 88.9 | 0.216 5.49 | 7.58 11.29 |
| 3 80 | 80S | 3.500 88.9 | 0.300 7.62 | 10.26 15.27 |
| 3-1/2 90 | 5S | 4.000 101.6 | 0.083 2.11 | 3.48 5.18 |
| 3-1/2 90 | 10S | 4.000 101.6 | 0.120 3.05 | 4.98 7.41 |
| 3-1/2 90 | 40S | 4.000 101.6 | 0.226 5.74 | 9.12 13.57 |
| 3-1/2 90 | 80S | 4.000 101.6 | 0.318 8.08 | 12.52 18.64 |
| 4 100 | 5S | 4.500 114.3 | 0.083 2.11 | 3.92 5.84 |
| 4 100 | 10S | 4.500 114.3 | 0.120 3.05 | 5.62 8.37 |
| 4 100 | 40S | 4.500 114.3 | 0.237 6.02 | 10.80 16.08 |
| 4 100 | 80S | 4.500 114.3 | 0.337 8.56 | 15.00 22.32 |
| 5 125 | 5S | 5.563 141.3 | 0.109 2.77 | 6.36 9.46 |
| 5 125 | 10S | 5.563 141.3 | 0.134 3.40 | 7.78 11.56 |
| 5 125 | 40S | 5.563 141.3 | 0.258 6.55 | 14.63 21.77 |
| 5 125 | 80S | 5.563 141.3 | 0.375 9.53 | 20.80 30.97 |
| 6 150 | 5S | 6.625 168.3 | 0.109 2.77 | 7.59 11.31 |
| 6 150 | 10S | 6.625 168.3 | 0.134 3.40 | 9.30 13.83 |
| 6 150 | 40S | 6.625 168.3 | 0.280 7.11 | 18.99 28.26 |
| 6 150 | 80S | 6.625 168.3 | 0.432 10.97 | 28.60 42.56 |
Yes, custom sizes are available for Alloy Steel WP11 Buttweld Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@machucafittings.com.
These fittings find extensive use in sectors like power generation, oil and gas, petrochemical, chemical processing, and refining. They are particularly well-suited for high-temperature service lines in boilers, superheaters, heat exchangers, and steam pipelines, where resistance to creep and oxidation is crucial. Offshore platforms and refineries also depend on them for transporting hot gases and fluids under tough service conditions. With their combination of durability, heat resistance, and outstanding mechanical properties, Alloy Steel WP11 Buttweld Fittings are a reliable choice for industries that need long-lasting and safe piping solutions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
