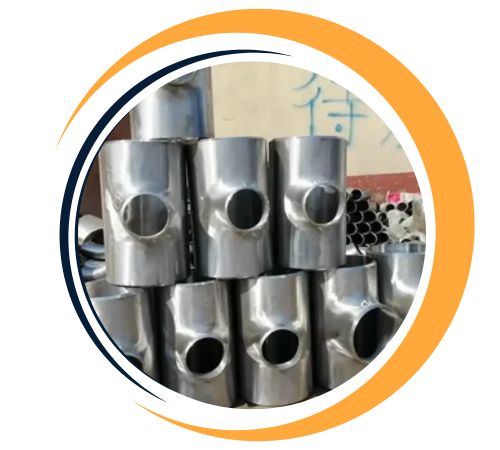

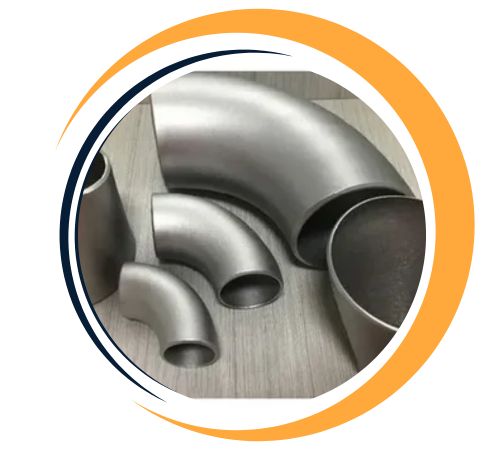

Machuca Fittings, located in Kuala Lumpur, Malaysia, stands out as a top manufacturer and supplier of Incoloy 800/800H/800HT Buttweld Fittings. They specialize in delivering high-quality solutions tailored for high-temperature and corrosive industrial environments. Their impressive lineup features elbows, tees, reducers, crosses, and end caps, all meticulously engineered to ensure leak-proof connections, robust mechanical strength, and long-lasting reliability. The Incoloy 800 series alloys, made from nickel, iron, and chromium, are well-known for their remarkable resistance to oxidation, thermal creep, and carburization, even at elevated temperatures. Machuca Fittings is committed to ensuring that their Incoloy 800/800H/800HT Buttweld Fittings comply with international standards, catering to the needs of the chemical, petrochemical, power generation, and high-temperature process industries.
Specifications : ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″
Type : Seamless / Welded / Fabricated
Schedule : Sch 5 TO Sch XXS.
Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
These Buttweld Fittings are primarily crafted from nickel, iron, and chromium, with small amounts of carbon, manganese, and silicon added in. Incoloy 800 offers solid protection against general corrosion and high-temperature oxidation, while the 800H and 800HT variants, which have a higher carbon content, provide improved creep and tensile strength at elevated temperatures. These fittings boast excellent tensile and yield strength, outstanding thermal stability, and toughness across a broad temperature spectrum. With their good weldability, ductility, and formability, they consistently perform well under high-temperature, high-pressure, and chemically aggressive conditions.
Machuca Fittings is a leading supplier of Incoloy 800/ 800H/ 800HT Buttweld Fittings in Kuala lumpur, Malaysia. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Incoloy 800/ 800H/ 800HT Buttweld Fittings from Machuca Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Incoloy 800, 800H, and 800HT buttweld fittings offer numerous advantages, including excellent high-temperature strength and superior resistance to oxidation and carburization. These alloys maintain stability and structural integrity in extreme environments, making them ideal for chemical processing, power plants, and heat exchangers. The addition of titanium in 800H and 800HT improves creep resistance and enhances long-term performance. Their outstanding weldability ensures easy fabrication, while high resistance to corrosion and stress cracking ensures longevity. These alloys provide durability, reducing maintenance and downtime in high-temperature industrial applications.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes for Incoloy 800/ 800H/ 800HT Buttweld Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com.
Incoloy 800/800H/800HT Buttweld Fittings are extensively utilized in industries that demand high-temperature strength, corrosion resistance, and durability. In chemical and petrochemical plants, they are essential in piping systems that handle oxidizing and reducing agents, acids, and other high-temperature fluids. Power generation facilities rely on them for boilers, heat exchangers, superheaters, and furnace piping. The oil and gas, petrochemical, and refinery sectors depend on these fittings for their thermal stability and resistance to scaling at high temperatures. Their unique combination of mechanical strength, corrosion resistance, and durability makes them a go-to choice for demanding applications.
