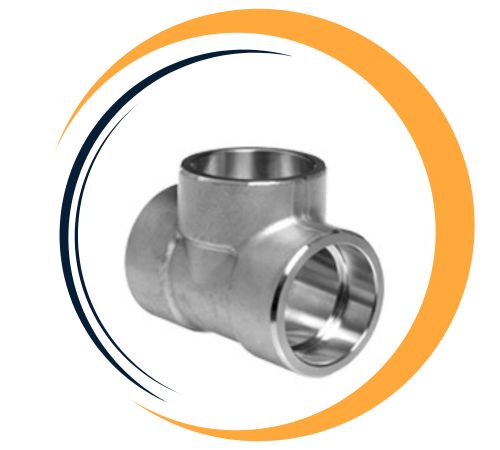

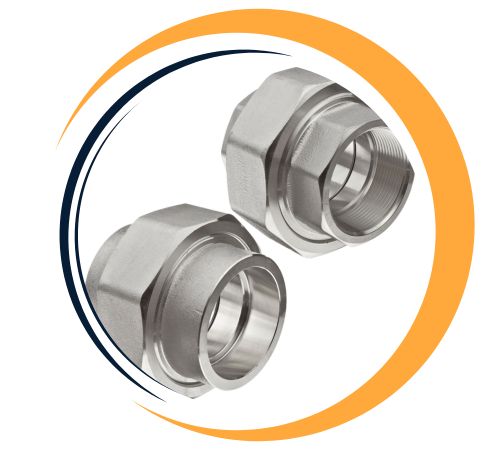

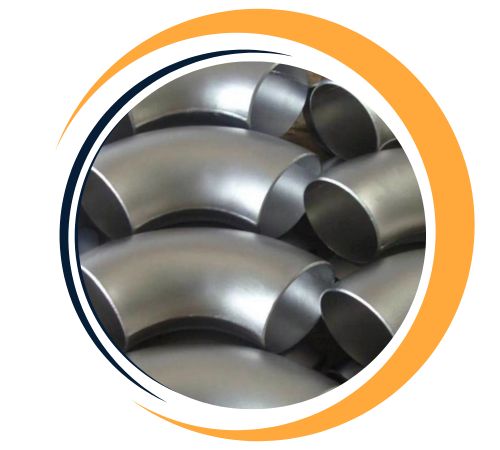

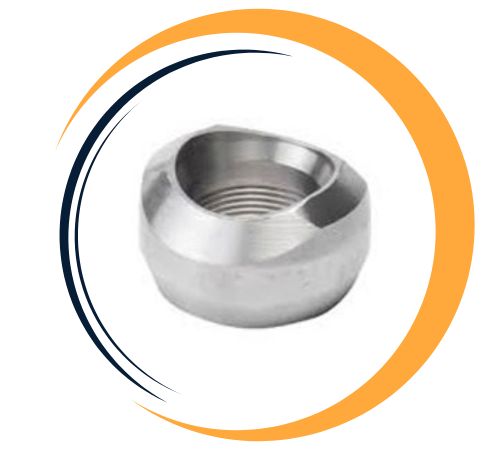

Machuca Fittings, based in Kuala Lumpur, Malaysia, stands out as a top manufacturer and supplier of Nickel Alloy 200 Forged Fittings. They specialize in delivering high-performance, corrosion-resistant solutions tailored for tough industrial settings. Their impressive lineup features forged elbows, tees, couplings, unions, and plugs, all designed to guarantee leak-proof connections, exceptional durability, and a long lifespan. Nickel Alloy 200, known for being a commercially pure wrought nickel, boasts remarkable resistance to caustic alkalis, acids, and reducing chemical environments, along with outstanding thermal and electrical conductivity. Machuca Fittings is committed to ensuring that their Nickel Alloy 200 forged fittings comply with international quality standards across various sectors, including chemical, marine, oil & gas, and power generation.
| ASTM B564 – ASME SB564 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
These Nickel Alloy 200 Forged Fittings are made up of over 99% nickel, with trace amounts of copper, iron, manganese, silicon, sulfur, and carbon. This unique composition grants them excellent corrosion resistance in both reducing and alkaline environments while preserving mechanical strength, ductility, and toughness. They perform reliably across a broad temperature spectrum, from cryogenic conditions to elevated heat, and showcase impressive weldability, machinability, and formability. Their ability to endure high-pressure, high-stress, and chemically aggressive situations ensures they deliver long-lasting and stable performance in critical industrial applications.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Machuca Fittings is a leading supplier of Nickel Alloy 200 Forged Fittings in Kuala lumpur, Malaysia. We offer an extensive range of Nickel Alloy 200 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Density (Kg.m-1) | 84.3 |
|---|---|
| Magnetic Permeability (20°C) | <1.005 |
| Curie Temperature (°C) | -90 |
| Young’s Modulus (N/mm2) | 179 x 103 |
| Specific Heat, 20°C (J.Kg-1.°K-1) | 418 |
| Specific Electrical Resistance, 20°C (?O.m) | 0.62 |
| Thermal conductivity,20°C (W.m-1.°K-1) | 17.5 |
| Mean coefficient of thermal expansion, 20-100°C (°K-1) | 13.4 x 10-6 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
Nickel Alloy 200 Forged Fittings from Machuca Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Nickel Alloy 200 Forged Fittings offer several advantages, including exceptional corrosion resistance, particularly in alkaline and mildly acidic environments, making them ideal for chemical processing and marine applications. They maintain high strength, good mechanical properties, and excellent weldability, ensuring durability and long service life. The alloys resistance to stress corrosion cracking and its ability to perform at elevated temperatures make it suitable for demanding applications. Furthermore, Nickel Alloy 200 has excellent thermal and electrical conductivity, enhancing its performance in electrical and heat exchanger systems, ensuring reliability and longevity in challenging environments.
Yes, custom sizes for Nickel Alloy 200 Forged Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com.
Nickel Alloy 200 Forged Fittings find extensive use in industries that demand durability, corrosion resistance, and mechanical strength. In chemical and petrochemical plants, they are essential for piping systems that handle caustic soda, acids, and other harsh chemicals. The oil and gas sector relies on them in refineries, offshore platforms, and gas processing units. Their resistance to seawater and brine makes them ideal for marine applications. Power generation facilities utilize them in boilers, condensers, and heat exchangers. Additionally, they play a role in food processing, synthetic fiber production, and aerospace applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
