Stainless Steel 317 / 317L Buttweld Fittings Manufacturer and Supplier In Kuala lumpur, Malaysia

Machuca Fittings, located in Kuala Lumpur, Malaysia, has built a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 317 and 317L Buttweld Fittings. Renowned for their precision engineering, durability, and strict quality control, Machuca Fittings caters to a variety of industries, including chemical processing, petrochemical, pharmaceuticals, food and beverage, and marine applications. Their Stainless Steel 317/317L Buttweld Fittings are crafted to offer exceptional corrosion resistance, high strength, and dependable, seamless connections even in the toughest environments. By following international standards, Machuca Fittings provides robust piping solutions that guarantee operational safety, long-lasting performance, and reliability, making them perfect for critical industrial and commercial uses.

Stainless Steel 317 Pipe Elbow In Malaysia, Stainless Steel 317L Pipe Fittings United kingdom, SS 317 Buttweld Elbow Kuala lumpur, Stainless Steel S31700 Seamless Fittings Exporter George town, Stainless Steel 1.4449 Butt Weld Pipe Fittings in Kuala lumpur, Stainless Steel 317 Two Joint Pipe Fittings Kuantan, 317L Stainless Steel Welded Fittings Manufacturers in Ipoh, Stainless Steel 317 Buttweld Fittings In Malaysia, ASTM A403 WP3 317L Stainless Steel Buttweld Fittings Supplier in Kuala lumpur, Malaysia.

Stainless Steel 317 / 317L Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP317)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 317
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

These Stainless Steel 317/317L Buttweld Fittings are primarily made up of iron, with 18–20% chromium, 11–13% nickel, and 3–4% molybdenum, while the low carbon content in 317L enhances weldability and minimizes carbide precipitation. This austenitic stainless steel is known for its outstanding resistance to pitting, crevice corrosion, and general corrosion, especially in aggressive and chloride-rich settings. It typically boasts a tensile strength of 515–620 MPa, a yield strength of 205–310 MPa, and can elongate up to 40%. Its blend of mechanical strength, thermal stability, and superior corrosion resistance makes it a top choice for critical piping systems in harsh industrial conditions.

Stainless Steel 317 / 317L Buttweld Fittings Chemical Composition

Grade	C	Ni	Mn	P	S	Cr	Si	Mo	Fe
317	0.08 max	11.00 – 15.00	2 max	0.045 max	0.030 max	18.00 – 20.00	1 max	3.00 – 4.00	57.845 min

Stainless Steel 317 / 317L Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 317 Buttweld Fittings Cross in Malaysia, Stainless Steel 1.4449 Buttweld Pipe Fittings United kingdom, SS 317L Butt Weld Pipe Cap Kuala lumpur, Stainless Steel 317 Eccentric Reducer George town, Stainless Steel 317L Equal Tee Kuala lumpur, 317 Stainless Steel Reducer in Kuantan, Stainless Steel 317L SR Elbow Exporter in Ipoh,

Largest Stainless Steel 317 / 317L Buttweld Fittings Supplier in Kuala lumpur, Malaysia

Machuca Fittings is a leading supplier of Stainless Steel 317 Buttweld Fittings in Kuala lumpur, Malaysia. We offer an extensive range of Stainless Steel 317L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 317 / 317L Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
317	1.4449	S31700	SUS 317	–	–	–	–

Why Choose Stainless Stainless Steel 317 / 317L Buttweld Fittings from Machuca Fittings?

Stainless Steel 317 Buttweld Fittings from Machuca Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31700 Stub End Uk, ANSI B16.9 Stainless Steel 317L Pipe Fittings United kingdom, Stainless Steel 317 Pipe Bend Stockist in Kuala lumpur, Stainless Steel 317L Pipe Nipple Manufacturer & Exporter in George town, Stainless Steel 1.4449 Butt Weld Pipe Fittings in Kuala lumpur, Stainless Steel 317 Pipe Two Joint Pipe Fittings Kuantan, 317L Stainless Steel Pipe Welded Fittings Manufacturers in Ipoh, Stainless Steel 317 Pipe Butt weld Fittings In Malaysia, ASTM A403 Stainless Steel 317L Pipe Butt Weld Fittings Supplier in Kuala lumpur, Malaysia.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Stainless steel 317/317L Buttweld Fittings provide exceptional corrosion resistance, especially in high acid and chloride environments. The low carbon content of 317L prevents carbide precipitation, enhances weldability and reduces the risk of intergranular corrosion. These materials retain high strength and durability at elevated temperatures, making them suitable for a variety of industrial applications. Excellent resistance to pitting, crevice corrosion and stress corrosion cracking ensures long-term performance. In addition they are highly versatile, and can withstand extreme weather conditions, making them ideal for the chemical, fuel and pharmaceutical industries

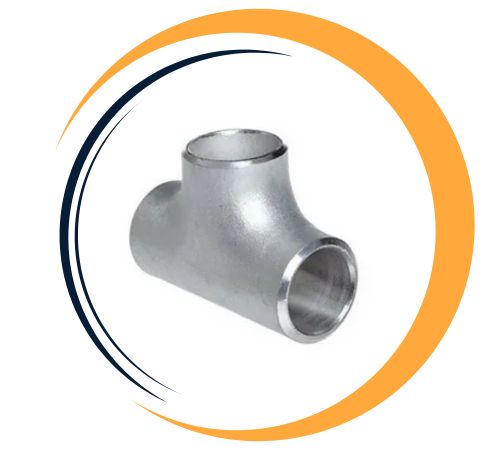

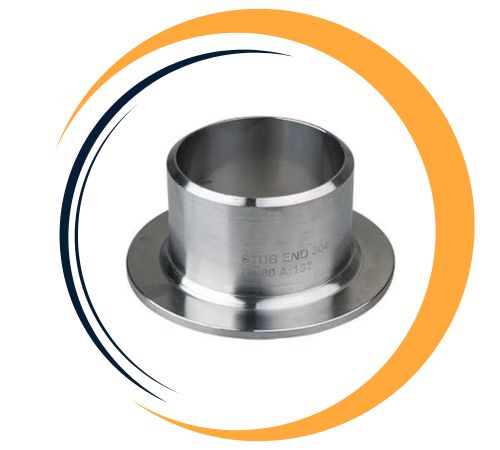

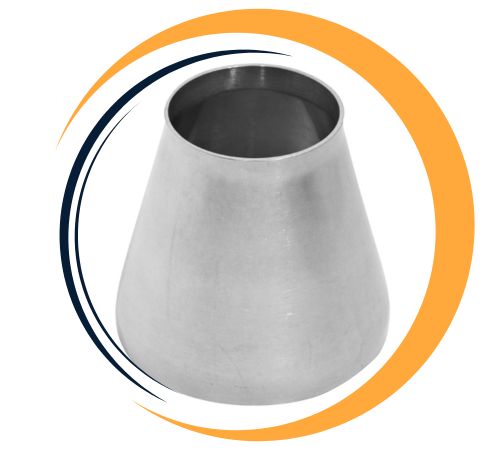

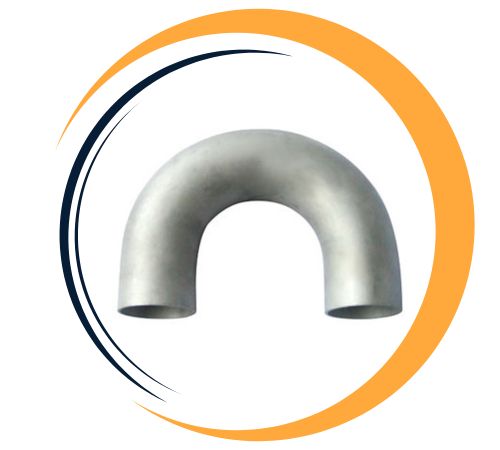

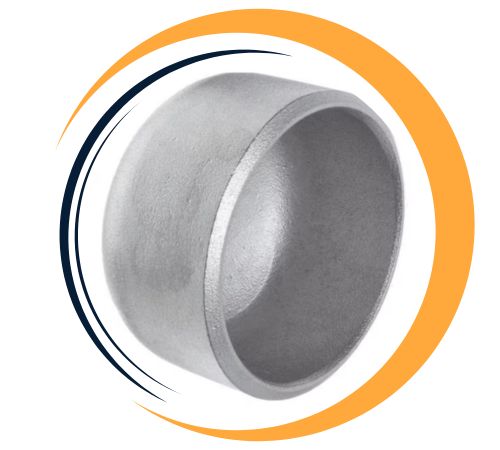

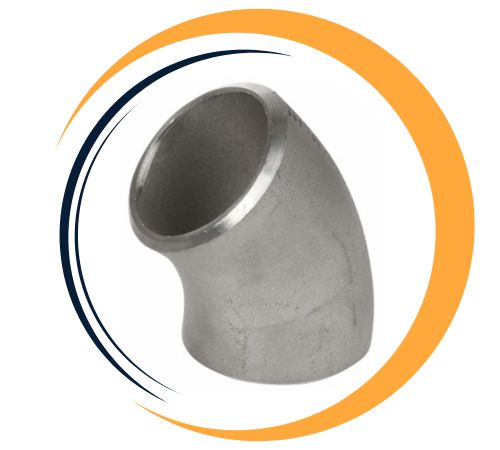

Types of Stainless Steel 317 / 317L Buttweld Fittings

Stainless Steel 317 / 317L Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 317 / 317L Buttweld Fittings?

Yes, custom sizes for Stainless Steel 317 / 317L Buttweld Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com.

ASTM A403 Stainless Steel 317 Butt Weld Cross in Malaysia, Stainless Steel 1.4449 Buttweld Pipe Fittings United kingdom, SS 317L Butt Weld Pipe Cap Kuala lumpur, Stainless Steel 317 Eccentric Reducer George town, Stainless Steel 317L Equal Tee Kuala lumpur, 317 Stainless Steel Reducer in Kuantan, SS 317L SR Elbow Exporter in Ipoh,

Application Industry of Stainless Steel 317 / 317L Buttweld Fittings

Stainless Steel 317/317L Buttweld Fittings find extensive use in industries that demand high corrosion resistance and durability. They are frequently utilized in chemical and petrochemical plants, pharmaceutical manufacturing, food and beverage processing, marine environments, and water treatment facilities. These fittings are ideal for pipelines that transport corrosive fluids, acids, or chloride-laden media. They also play a crucial role in heat exchangers, boilers, and industrial piping systems that are exposed to aggressive chemicals and high temperatures. With their seamless construction and excellent mechanical properties, they are designed to withstand the rigors of demanding applications.
