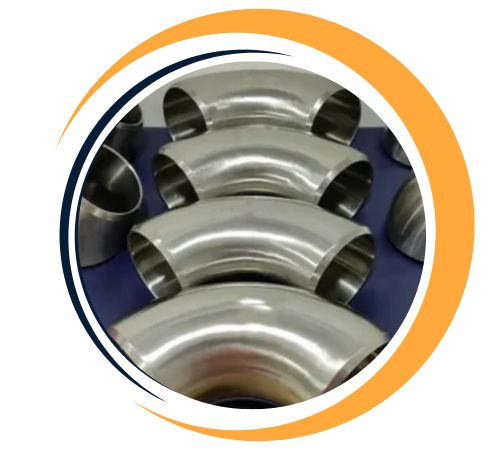

Machuca Fittings, based in Kuala Lumpur, Malaysia, stands out as a top manufacturer and supplier of Titanium Grade 2 Buttweld Fittings. They offer dependable solutions for industries that need exceptional corrosion resistance and durability. Their product lineup features elbows, tees, reducers, and caps, all crafted with precision to guarantee leak-proof and long-lasting performance. Known as commercially pure titanium, Titanium Grade 2 is a popular choice due to its remarkable resistance to seawater, oxidizing agents, and chloride environments. Committed to upholding international quality standards, Machuca Fittings provides Titanium Gr 2 Buttweld Fittings that are trusted in marine, chemical, aerospace, and industrial sectors.
| Specifications | ASTM B363 / ASME SB363 |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Type | Seamless, ERW, Welded, Fabricated |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness. |
| Pipe Fittings Type | Reducer (Concentric & Eccentric), CAP, Stubend (Long &Short), Nipple (Barrel), Bend (Long & Short), Elbow (180 Deg., 90 Deg. & 45 Deg.), Tee (Equal & Unequal) |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
These fittings are made from commercially pure titanium, which is about 99% titanium, with trace amounts of oxygen, nitrogen, iron, and carbon that boost their strength and stability. They offer a balanced combination of moderate tensile and yield strength, high ductility, and a favorable strength-to-weight ratio. Additionally, these fittings are known for their outstanding resistance to seawater, chlorides, and oxidizing chemicals. Their lightweight yet durable nature makes them perfect for challenging service conditions. Titanium Gr 2 also boasts excellent weldability and formability, ensuring reliable performance in both high and low-temperature settings across various industries.
Machuca Fittings is a leading supplier of Titanium Grade 2 Buttweld Fittings in Kuala lumpur, Malaysia. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 2 Buttweld Fittings from Machuca Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium Grade 2 Buttweld Fittings offer numerous advantages, including exceptional corrosion resistance, particularly in acidic and marine environments. Their high strength-to-weight ratio ensures durability while keeping systems lightweight. These fittings are highly resistant to oxidation, ensuring long-term performance without degradation. Additionally, Titanium Grade 2 offers excellent weldability and formability, making installation and maintenance easier. Their resistance to stress and fatigue enhances the reliability of piping systems under extreme conditions. Ideal for industries such as aerospace, chemical, and marine, Titanium Grade 2 Buttweld Fittings provide optimal performance and longevity.
| ASME B16.9 ASTM B363 Grade 2 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
| All Fittings | 90°and 45° Ells and Tees | Reducers and Lap Joint Stub | Caps | 180° Returns | Angularity Tol | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Plane Size (NPS) | Outside(1) Diameter at Bevel | Inside(1) Diameter at End | Wall(2) Thickness | Centre-to- End Dimension A,B,C,M | Overall Length L | Overall Length E | Centre-to- Centre Dimension O | Back-to- Face Dimension K | Alignment at Ends U | Nominal Pipe SIze | Off Angle Q | Off Angle P |
| 1/2 TO 2-1/2 | +1/16 | ±1/32 | Not less than 87-1/2% of Normal Thickness | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 12 to 4 | 1/32 | 1/16 |
| -1/32 | 5 to 8 | 1/16 | 1/8 | |||||||||
| 3 TO 3-1/2 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 10 to 12 | 3/32 | 3/16 | |
| 4 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 14 to 16 | 3/32 | 1/4 | |
| 5 TO 8 | +1/32 | ±1/16 | ±1/16 | ±1/16 | ±1/4 | ±1/4 | ±1/4 | ±1/32 | 18 to 24 | 1/8 | 3/8 | |
| -1/16 | ||||||||||||
| 10 TO 18 | +1/16 | ±1/8 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | All dimensions are in inches | |||
| -1/8 | ||||||||||||
| 20 TO 24 | +1/4 | ±3/32 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | ||||
| -3/32 | ||||||||||||
Yes, custom sizes for Titanium Grade 2 Buttweld Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com.
Titanium Grade 2 Buttweld Fittings find extensive use in sectors that require a mix of corrosion resistance and lightweight strength. In the chemical and petrochemical industries, they are essential for piping systems that handle corrosive substances. The marine and offshore sectors rely on them for long-term seawater applications. Aerospace industries appreciate their low density and dependable strength. Power generation facilities use them in condensers, heat exchangers, and piping systems. Moreover, their non-toxic and biocompatible characteristics make them ideal for pharmaceutical, food processing, and medical uses, ensuring safety, reliability, and longevity.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
