Machuca Fittings, located in Kuala Lumpur, Malaysia, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Alloy Steel WP1 Pipe Fittings. They cater to clients in Midland, UK, and various global markets. With a strong focus on precision engineering, outstanding durability, and adherence to international quality standards, the company provides fittings that guarantee excellent performance even in the toughest environments. Renowned for their reliability, prompt delivery, and competitive pricing, Machuca Fittings has established itself as a trusted partner for industries that need robust piping solutions. Their Alloy Steel WP1 Pipe Fittings are specifically designed to meet the stringent demands of industrial, petrochemical, and power generation applications.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

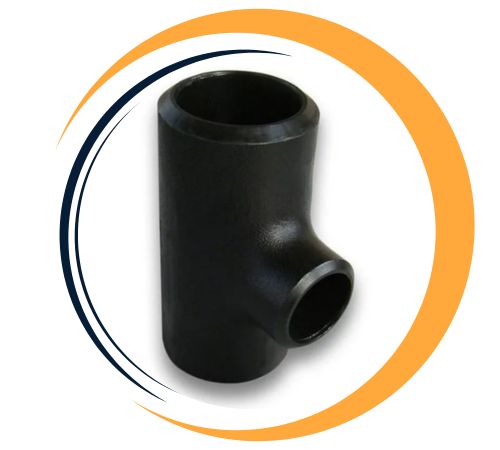

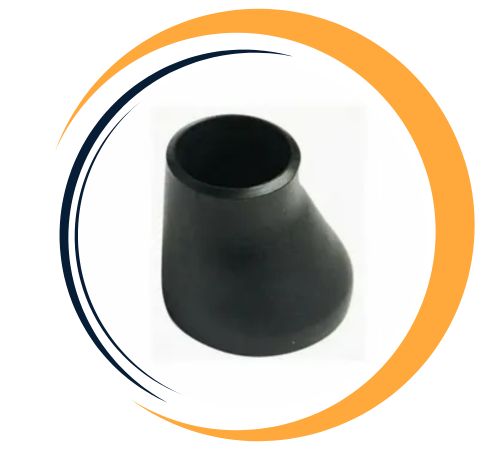

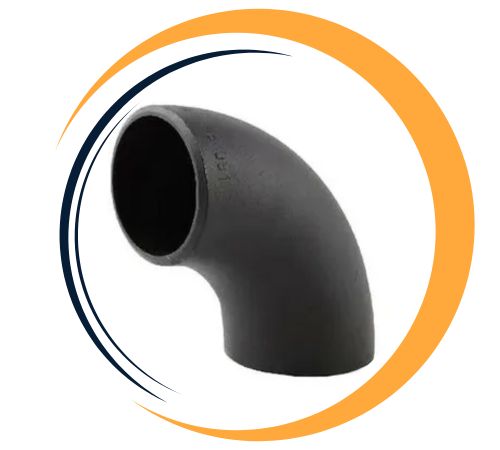

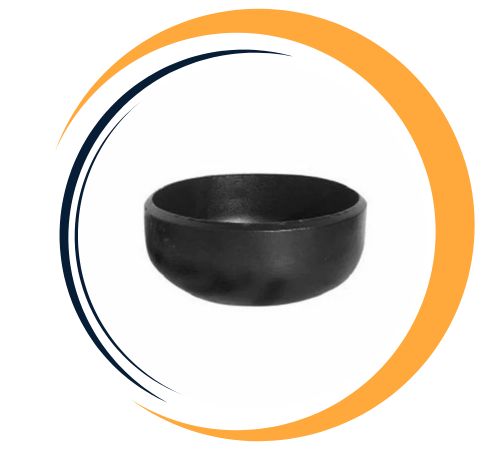

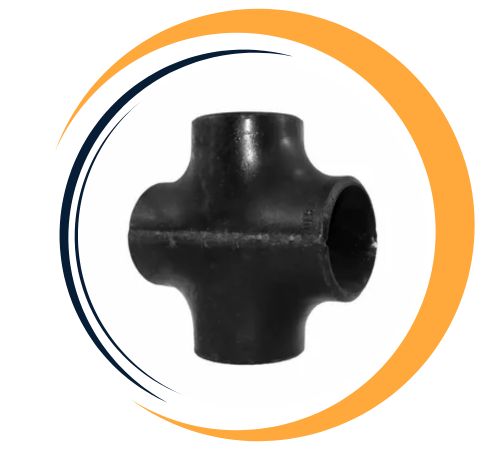

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
These fittings are primarily made from chromium and molybdenum, with iron serving as the base metal. This unique composition boosts their resistance to high temperatures, creep, and oxidation. On the mechanical side, these fittings offer impressive tensile and yield strength, exceptional toughness, and superior hardness, making them perfect for high-pressure systems. They also feature good weldability and formability, which simplifies fabrication and installation. The right balance of strength, corrosion resistance, and durability ensures that Alloy Steel WP1 Pipe Fittings can endure harsh operating conditions and provide long-lasting performance across various industries.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP1 | 0.28 max | 0.30- 0.90 | 0.10- 0.50 | 0.045 max | 0.045 max | – | 0.044-0.65 max |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP1 | 220 min | 415 min | 20 |
Machuca Fittings is a leading supplier of Alloy Steel WP1 Pipe Fittings in Kuala lumpur, Malaysia. We offer an extensive range of Alloy Steel WP1 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP1 Pipe Fittings from Machuca Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel WP1 Pipe Fittings offer excellent strength and durability, making them ideal for high-pressure and high-temperature applications. Their corrosion resistance ensures longevity in harsh environments, including chemical processing and power plants. These fittings provide thermal stability and resistance to oxidation, ensuring reliable performance under fluctuating temperatures. With superior weldability and machinability, they facilitate efficient installation and customization. Their cost-effectiveness and versatility make them suitable for diverse industries such as oil and gas, petrochemicals, and refineries. Additionally, they exhibit dimensional accuracy, ensuring leak-proof connections and enhanced system efficiency.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP1 Pipe Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com.
Alloy Steel WP1 Pipe Fittings find extensive use in sectors that require strength, heat resistance, and durability. They’re commonly utilized in power generation plants, oil refineries, and petrochemical facilities for managing high-pressure and high-temperature fluids. In the chemical and gas processing industries, they play a vital role in the safe and reliable transport of corrosive media. Their versatility also extends to boilers, heat exchangers, and superheaters, thanks to their ability to withstand thermal stresses. Moreover, Alloy Steel WP1 Pipe Fittings are essential in marine, aerospace, and heavy engineering fields, delivering dependable performance even under demanding conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
