Machuca Fittings, located in Kuala Lumpur, Malaysia, has earned a solid reputation as a reliable manufacturer and supplier of Alloy Steel WP22 Pipe Fittings, catering to industries in Midland, UK. With a keen emphasis on precision engineering and adherence to international quality standards, the company provides fittings that boast exceptional strength, durability, and the ability to withstand high temperatures and pressures. By blending cutting-edge manufacturing technology with rigorous quality control, Machuca Fittings meets the varied needs of industries around the globe. Their Alloy Steel WP22 Pipe Fittings are crafted to deliver dependable performance even in the toughest conditions, making them a go-to choice for clients who prioritize efficiency and longevity.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

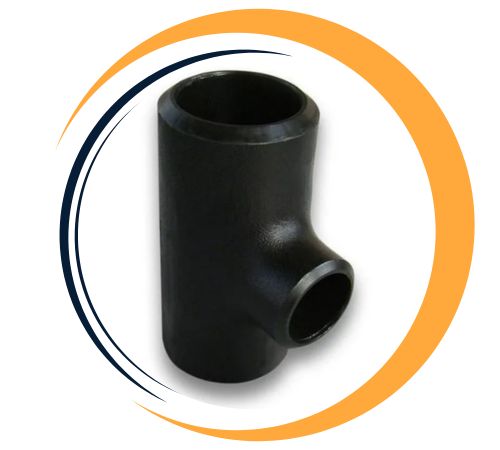

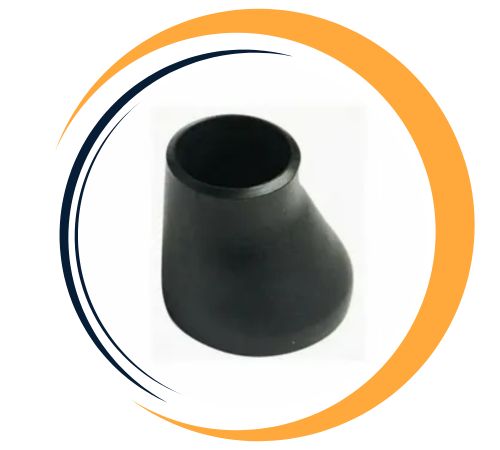

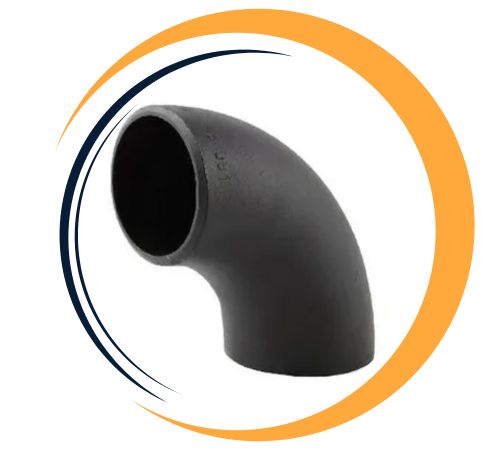

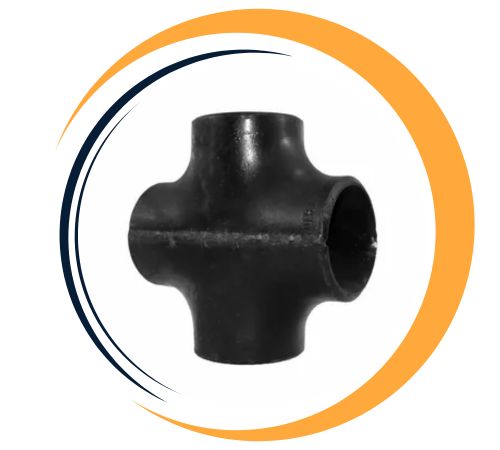

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
These Alloy Steel WP22 Pipe Fittings are made from a mix of chromium, molybdenum, carbon, manganese, phosphorus, sulfur, and silicon, striking a remarkable balance between strength and toughness. They showcase impressive tensile strength, yield strength, and hardness while still retaining ductility and toughness at elevated temperatures. With superior resistance to oxidation, corrosion, and creep, these fittings are perfectly suited for high-pressure and high-temperature applications. Their mechanical properties guarantee reliability in challenging operating environments, especially in scenarios where strength, durability, and a long service life are crucial.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP22 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP22 | 415-585 | 205 | 20 |
Machuca Fittings is a leading supplier of Alloy Steel WP22 Pipe Fittings in Kuala lumpur, Malaysia. We offer an extensive range of Alloy Steel WP22 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP22 Pipe Fittings from Machuca Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel WP22 Pipe Fittings offer exceptional resistance to high-temperature environments, making them ideal for power plants, boilers, and other high-heat applications. These fittings are known for their excellent weldability, ensuring ease of installation and strong, durable joints. With high tensile strength, they provide superior structural integrity under pressure. The material is also highly resistant to corrosion, oxidation, and thermal fatigue, making WP22 fittings reliable in demanding conditions. Their versatility, cost-effectiveness, and long service life make them a preferred choice for various industrial applications.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP22 Pipe Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com.
Alloy Steel WP22 Pipe Fittings find extensive use across various industries, including power generation, oil and gas, petrochemical, chemical processing, and refineries. Their capacity to endure high pressure and elevated temperatures makes them ideal for steam lines, boilers, heat exchangers, and pressure vessels. Additionally, they are essential in pipelines that transport corrosive or high-temperature fluids, ensuring safety and efficiency in critical operations. Their durability and resistance to thermal stress also render them suitable for long-term use in heavy-duty industrial systems, where consistent and reliable performance is of utmost importance.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
