Machuca Fittings, based in Kuala Lumpur, Malaysia, stands out as a top manufacturer and supplier of high-quality Stainless Steel 304 and 304L Forged Fittings. Known for their precision, quality, and durability, Machuca Fittings caters to a variety of industries, including chemical processing, petrochemical, food and beverage, pharmaceuticals, and marine applications. Their Stainless Steel 304/304L Forged Fittings are designed to create seamless, strong connections that boast excellent corrosion resistance and mechanical strength. By following international standards and maintaining strict quality control, Machuca Fittings provides dependable and long-lasting piping solutions that enhance safety, efficiency, and performance in both industrial and commercial settings.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

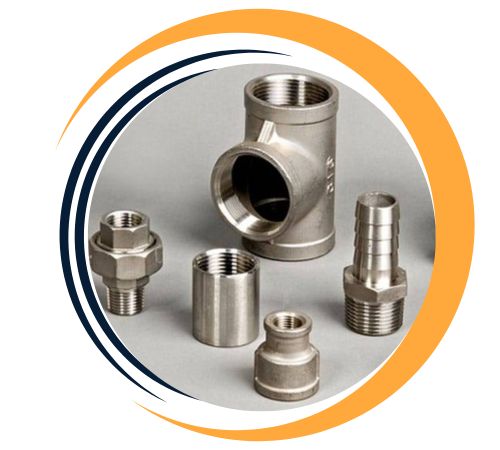

Type : Socketweld Fittings, Screwed-Threaded Fittings
The Stainless Steel 304/304L Forged Fittings are primarily made of iron, with 18–20% chromium and 8–10.5% nickel, while 304L features a lower carbon content to improve weldability and minimize the risk of intergranular corrosion. This type of austenitic stainless steel is known for its impressive tensile strength, typically ranging from 485 to 620 MPa, a yield strength of 170 to 205 MPa, and an elongation of up to 40%. Its outstanding corrosion resistance, thermal stability, and mechanical properties make it perfect for demanding industrial piping systems. The forged design offers greater strength and durability compared to standard welded fittings, ensuring reliable performance even under pressure and temperature fluctuations.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Machuca Fittings is a leading supplier of Stainless Steel 304/304L Forged Fittings in Kuala lumpur, Malaysia. We offer an extensive range of Stainless Steel 304/304L Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| Products | Size | |
|---|---|---|

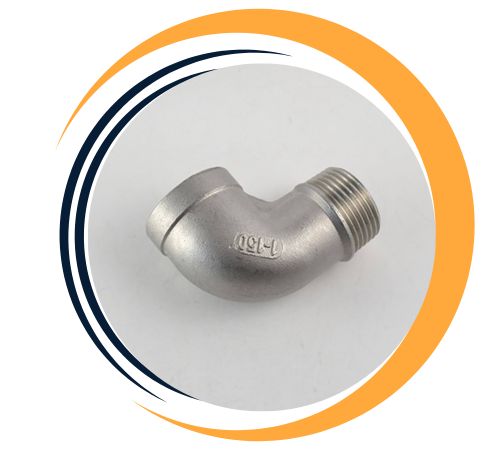

| ASTM A182 SS 304 Forged 90° Elbow | ASTM A182 SS 304 Forged 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

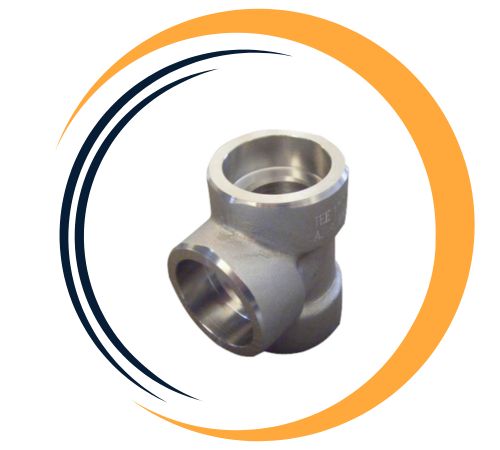

| ASTM A182 SS 304 Forged Tee | ASTM A182 SS 304 Forged Union | |
| ASTM A182 SS 304 Forged Cross | ASTM A182 SS 304 Forged Insert | |
| ASTM A182 SS 304 Forged Bushing | ASTM A182 SS 304 Forged Pipe Nipple | |
| ASTM A182 SS 304 Forged Cap | ASTM A182 SS 304 Forged Coupling | |
| ASTM A182 SS 304 Forged Plug | ASTM A182 SS 304 Forged Street Elbow | |
Choose Stainless Steel 304/304L Forged Fittings from Machuca Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 304/304L forged fittings offer many advantages, including superior corrosion resistance, especially in acidic and alkaline environments, and their high tensile strength and toughness ensure durability under stress and temperature conditions even at higher levels. The low carbon content of 304L improves weldability and reduces the risk of carbide precipitation, thereby maintaining overall system integrity. These fittings are highly resistant to corrosion, oxidation and staining, making them ideal for a wide range of applications including pharmaceutical, food processing and marine etc. Their smooth finish makes for easy maintenance and excellent aesthetic appeal.
Yes, custom sizes for Stainless Steel 304/304L Forged Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps | 1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness | SCH 80 / XS | SCH 160 | XXS |
Stainless Steel 304/304L Forged Fittings are extensively utilized in industries that require corrosion-resistant, durable, and high-strength piping solutions. They find common applications in chemical and petrochemical processing, food and beverage production, pharmaceutical manufacturing, water treatment facilities, and marine sectors. These fittings are ideal for pipelines transporting liquids, gases, or steam under moderate pressure and temperature conditions. They are also employed in high-pressure systems, industrial plants, and construction projects that demand reliable and leak-proof connections.
