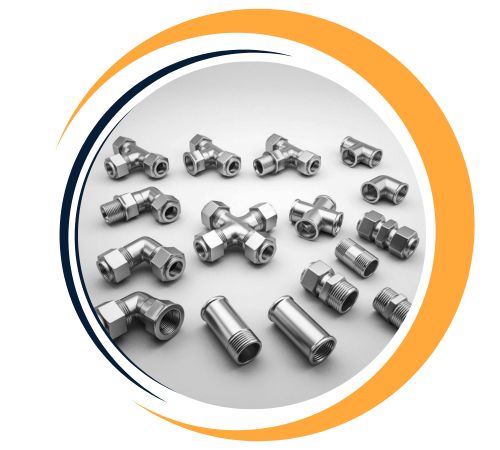

Machuca Fittings, Kuala Lumpur, Malaysia, is a leading manufacturer and supplier of Super Duplex Steel UNS S32760 forged fittings, providing engineered components that are capable of working in the most demanding industrial conditions. The company is well regarded for producing high-quality forged fittings that conform to international standards for strength, durability, and corrosion resistance. With an emphasis on reliability and customer satisfaction, Machuca Fittings specializes in serving the critical markets of oil and gas, petrochemicals, marine, and energy with strong solutions that guarantee safety, efficiency, and lifespan in intricate piping systems and high-pressure applications.
Specifications : ASTM A182 / ASME SA182
Size: 1/2″NB TO 4″ NB IN
Class : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc.
Type: Socket Weld (S/W) and SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings.
UNS S32760 forged Super Duplex Steel fittings are manufactured from a superior alloy with about 25% chromium, 7% nickel, 3.6% molybdenum, and additions of tungsten, nitrogen, and copper. This material provides excellent resistance to pitting, crevice corrosion, and chloride stress corrosion cracking. The material has high mechanical strength with a common yield strength of 550 MPa and tensile strength in excess of 750 MPa, along with very good impact toughness at low temperatures. The duplex structure—having both austenitic and ferritic phases—provides excellent resistance to fatigue and structural stability, so these fittings can be employed in harsh operating conditions.
| UNS | C | Si | Mn | P | S | Cr | Mo | Ni | N |
| S32760 | 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 |
| UNS | Grade | Proof Stress 0.2% (MPa) | Tensile Strength (MPa) | Elongation A5(%) | Hardness Max | |
| HB | HRB | |||||
| S32760 | 2760 | 550 | 795 | 15 | 310 | 32* |
Machuca Fittings is a leading supplier of Super Duplex Steel UNS S32760 Fittings in Kuala lumpur, Malaysia. We offer an extensive range of Super Duplex Steel UNS S32760 Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Standard | Super Duplex S2760 |
| UNS | S32760 |
| WERKSTOFF NR. | 1.4410 |
Choose Super Duplex Steel UNS S32760 Forged Fittings from Machuca Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Super Duplex Steel UNS S32760 forged fittings offer several advantages, including exceptional corrosion resistance to chloride-induced stress corrosion cracking, pitting, and crevice corrosion. Their high tensile strength and excellent toughness make them ideal for use in harsh environments, such as offshore, marine, and chemical industries. These fittings are also highly resistant to erosion, ensuring durability and extended service life. Their ability to perform reliably in extreme temperatures and pressures makes them a preferred choice for critical applications, providing long-term performance and cost-efficiency in demanding industries.
Yes, custom sizes for Super Duplex Steel UNS S32760 Forged Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Super Duplex Steel UNS S32760 forged fittings find extensive application in high-corrosion, high-stress applications like offshore platforms, chemical processing facilities, and subsea pipelines. Their high corrosion resistance and mechanical strength render them perfectly suitable for power plants, desalination systems, marine equipment, and pressure vessels. These fittings are also popular in pulp and paper applications and wastewater treatment plants, where exposure to aggressive chemicals and saline conditions is routine. Their heavy-duty performance provides leak-proof, long-term connections in critical applications where reliability and safety are paramount.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
