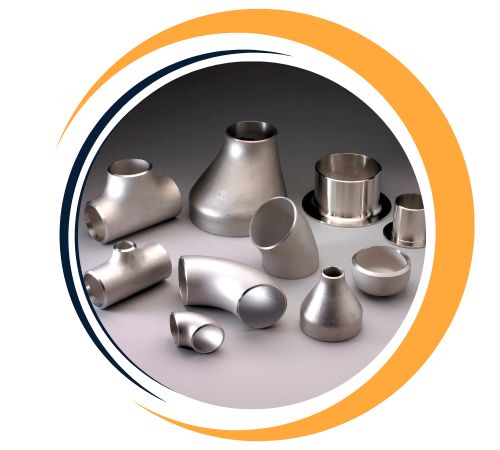

Machuca Fittings, based in Kuala Lumpur, Malaysia, stands out as a trusted manufacturer and supplier of ASTM A860 WPHY 42 Pipe Fittings. They provide robust and durable solutions tailored for critical industrial applications. Their range includes elbows, tees, reducers, crosses, and caps, all meticulously engineered to ensure leak-proof connections, mechanical integrity, and a long lifespan. ASTM A860 WPHY 42 is a high-strength carbon steel grade designed for moderate to high-pressure scenarios. Renowned for its toughness, weldability, and strength, these fittings find extensive use in the oil and gas, petrochemical, power generation, and marine sectors.
| Specifications | ASTM A860/ ASME SA860 |
|---|---|
| Grade | WPHY 42 |
| Dimension | ASME/ ANSI B16.9 | BS10 | ASME B16.28 | BS1560 | BS4504 | MSS-SP-43 |
| Thickness of Fittings | SCH 10, SCH20, SCH 30, STD SCH 40, SCH 60, XS, SCH80, SCH100, SCH 120, SCH 140, SCH160, XXS available with NACE MR 01-75 |
| Types | Seamless | Welded | Fabricated |
| Bending Radius | R= 1D, 8D, 3D, 2D, 6D, 5D, 10D |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Size Ranges | Seamless ButtWeld Fitting: From 1/2″ – 10″ Welded ButtWeld Fitting: From 1/2″ – 48″ |
| Process of Manufacturing | Push, Press, Cast, Forge. |
The composition of ASTM A860 WPHY 42 Pipe Fittings primarily includes carbon, manganese, silicon, molybdenum, and a few trace alloying elements that enhance their mechanical properties. These fittings boast impressive tensile and yield strength, solid hardness, and dependable toughness, making them ideal for pipelines that operate under high pressure and temperature. They also offer good weldability and formability, which simplifies fabrication and installation. With outstanding resistance to stress, fatigue, and wear, WPHY 42 pipe fittings ensure durability and performance even in challenging environments.
| Grade | P | Mn | S | Si | Ni | Cr | Mo | Cu | Ti | Cb | V | Al |
| WPHY42 | 1.00-1.45 | 0.20 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.10 | 0.05 | 0.04 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 515-690 | 415 | 28 % |
Machuca Fittings is a leading supplier of ASTM A860 WPHY 42 Pipe Fittings in Kuala lumpur, Malaysia. We offer an extensive range of ASTM A860 WPHY 42 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose ASTM A860 WPHY 42 Pipe Fittings from Machuca Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
ASTM A860 WPHY 42 Pipe Fittings offer several advantages, including exceptional strength and durability, making them ideal for high-pressure applications. Their excellent impact resistance ensures reliable performance in low-temperature environments. The fittings are corrosion-resistant, providing longevity in challenging conditions such as oil, gas, and petrochemical pipelines. They are engineered to precise standards, ensuring a secure and leak-proof connection in pipeline systems. Additionally, these fittings are versatile, compatible with various pipeline materials, and cost-effective, reducing maintenance needs while ensuring efficiency and safety in demanding industrial operations.
Yes, custom sizes for ASTM A860 WPHY 42 Pipe Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
You’ll find ASTM A860 WPHY 42 Pipe Fittings widely utilized in pipeline systems where strength and reliability are paramount. In the oil and gas sector, they are essential for transmission lines, refinery units, and offshore platforms. Petrochemical facilities rely on them for processing systems that handle pressurized fluids and gases. Power generation plants use these fittings in high-pressure steam and water pipelines, while the marine and shipbuilding industries appreciate their toughness and resilience. The combination of strength, weldability, and durability makes ASTM A860 WPHY 42 pipe fittings a vital component of critical piping infrastructure.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
