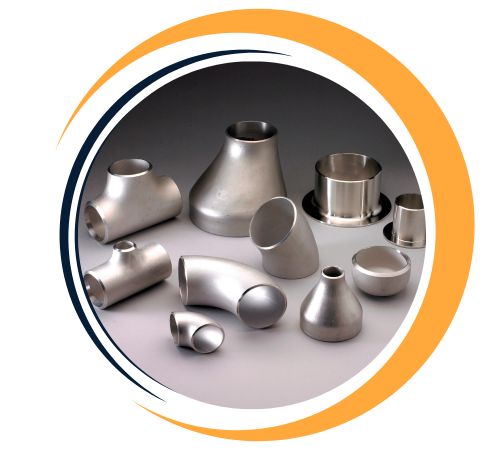

Machuca Fittings, based in Kuala Lumpur, Malaysia, has earned a solid reputation as a reliable manufacturer and supplier of Carbon Steel P265GH Pipe Fittings. They specialize in providing high-quality, durable solutions tailored for industrial piping systems. Their impressive lineup features elbows, tees, reducers, caps, and crosses, all crafted to ensure secure connections, maintain structural integrity, and offer a long service life. P265GH is a carbon steel grade recognized under EN 10216 and EN 10253 standards, celebrated for its remarkable strength, toughness, and weldability. These attributes make P265GH pipe fittings perfect for use in pressure vessels, boilers, and high-temperature piping systems across various industries.
| P265GH Carbon Steel Pipe Fittings size | P265GH Seamless Butt Weld Fittings : 1/2″ – 10″ P265GH Welded Butt Weld Fittings : 1/2″ – 48″ |
|---|---|
| CS P265GH Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1800, BS10 |
| P265GH Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| P265GH Buttweld Pipe FittingsType | DN15-DN1200 |
| EN 10253-1 / EN 10253-2 P265GH Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A234 Gr P265GH Pipe Fitting |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A234 P265GH Buttweld Fitting |
| EN 10253-1 / EN 10253-2 P265GH Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| P265GH Carbon Steel Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| EN 10253-1 P265GH Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | CS 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
The composition of Carbon Steel P265GH Pipe Fittings includes controlled amounts of carbon, manganese, silicon, phosphorus, and sulfur. This careful blend guarantees good tensile and yield strength, high toughness, and dependable performance even under elevated temperatures and pressures. They are designed for excellent weldability and machinability, making them straightforward to fabricate and install in complex piping systems. With impressive resistance to wear, stress, and deformation, P265GH pipe fittings promise long-lasting durability in demanding service environments.
| Element | % by mass | Element | % by mass |
| Carbon (C) | ≤0.20 | Silicon (Si) | ≤0.40 |
| Manganese (Mn) | 0.80 to 1.40 | Phosphorous (P) (maximum) | 0.025 |
| Sulphur (S) (maximum) | 0.015 | Aluminium (Al) | <=0.020 |
| Nitrogen (N) | <=0.012 | Chromium (Cr) | <=0.30 |
| Copper (Cu) | <=0.30 | Molybdenum (Mo) | <=0.08 |
| Niobium (Nb) | <=0.020 | Nickel (Ni) | <=0.30 |
| Titanium (Ti) (maximum) | 0.03 | Vanadium (Vi) | <=0.02 |
| Nominal thickness (millimeter): | to 100 | 100 – 150 | 150 – 250 |
| Rm – Tensile strength (MPa) (+N) | 410-530 | 400-530 | 390-530 |
Machuca Fittings is a leading supplier of Carbon Steel P265GH Pipe Fittings in Kuala lumpur, Malaysia. We offer an extensive range of Carbon Steel P265GH Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Carbon Steel P265GH Pipe Fittings from Machuca Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Carbon Steel P265GH Pipe Fittings offer several advantages, including excellent strength and durability, making them ideal for high-pressure and high-temperature environments. Their high tensile strength ensures they can withstand mechanical stress, while their resistance to thermal fatigue enhances their longevity in demanding applications. Additionally, these fittings exhibit good weldability and formability, facilitating ease of installation and customization. They are also cost-effective, offering a balance of performance and affordability. With resistance to impact and corrosion, Carbon Steel P265GH Pipe Fittings ensure reliable, long-term operation in industries like petrochemical, oil & gas, and power generation.
Yes, custom sizes for Carbon Steel P265GH Pipe Fittings are available at Machuca Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@machucafittings.com
| EU EN | USA – | Germany DIN,WNr | Japan JIS | France AFNOR | England BS | Italy UNI | Spain UNE | Sweden SS | Poland PN | Czechia CSN | Austria ONORM | Russia GOST | Inter ISO | ||||||||||||||||||||||||||||||
| P265GH Flange |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
These fittings are widely utilized in industries that require strength, toughness, and the ability to withstand high temperatures. In power generation plants, they find their place in boilers, steam pipelines, and pressure vessels. The petrochemical and refinery sectors rely on them for processing units that handle hot fluids and gases. The oil and gas industry depends on them for high-pressure piping networks and transportation lines. Moreover, marine and shipbuilding applications take advantage of their durability and toughness in challenging environments. The combination of weldability, strength, and heat resistance makes P265GH pipe fittings essential for critical piping infrastructure.
