Machuca Fittings, based in Kuala Lumpur, Malaysia, stands out as a top manufacturer and supplier of premium Stainless Steel 310 Pipe Fittings. Renowned for their precision engineering, durability, and commitment to quality, Machuca Fittings caters to various sectors, including power generation, chemical processing, petrochemical, and industrial manufacturing. Their Stainless Steel 310 Pipe Fittings are expertly crafted to endure extremely high temperatures, resist oxidation, and ensure seamless, dependable connections in challenging environments. By following international standards and maintaining rigorous quality control, Machuca Fittings provides robust piping solutions that guarantee operational safety, long-lasting performance, and efficiency, making them perfect for critical industrial and commercial applications.
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |

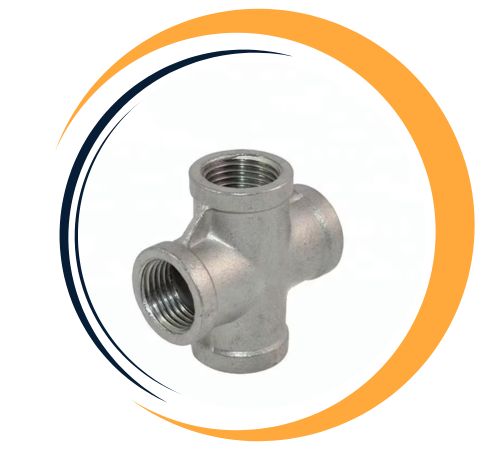

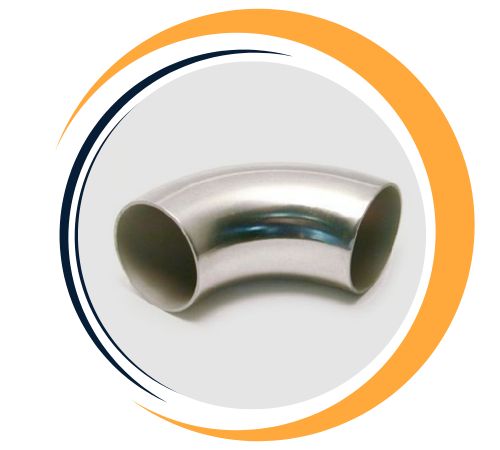

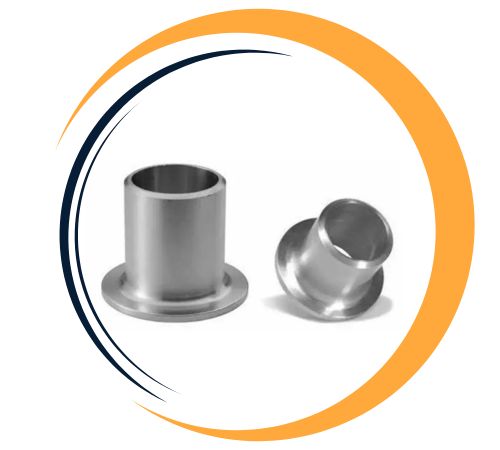

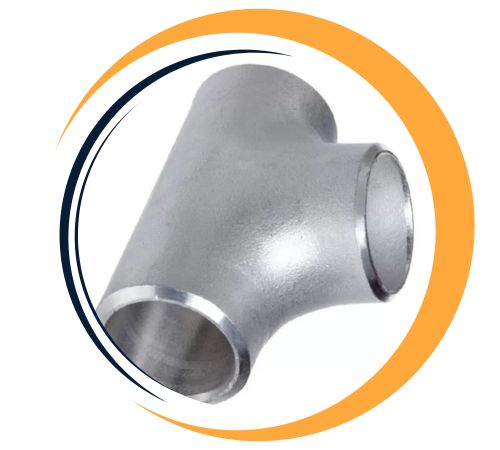

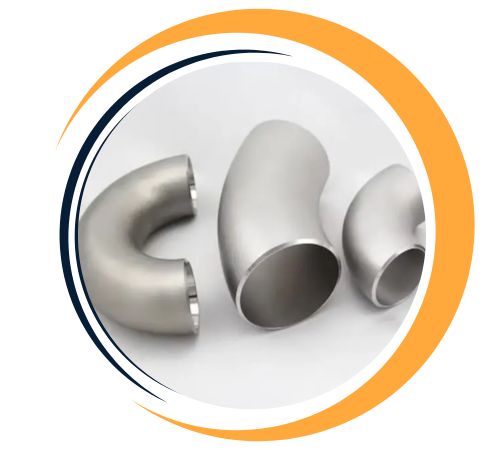

| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
These Stainless Steel 310 Pipe Fittings are primarily made up of iron, along with 24–26% chromium and 19–22% nickel, plus small amounts of carbon, manganese, and silicon. This austenitic stainless steel is known for its remarkable high-temperature strength, thermal stability, and outstanding resistance to oxidation and scaling in oxidizing conditions. Typically, it boasts a tensile strength of 515–620 MPa, a yield strength of 205–310 MPa, and can elongate up to 40%. Its unique blend of mechanical strength, corrosion resistance, and thermal durability makes it an excellent choice for piping systems that face extreme temperatures and demanding industrial environments.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Machuca Fittings one of the largest suppliers of Stainless Steel 310 Pipe Fittings in Kuala lumpur, Malaysia. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 310 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 310 Pipe Fittings in the Malaysia.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 310 Pipe Fittings from Machuca Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
Stainless Steel 310 Pipe Fittings offer exceptional heat resistance, making them ideal for high-temperature applications up to 1100°C. They provide excellent oxidation and corrosion resistance, especially in sulfurous, acidic, and high-temperature environments. The high chromium and nickel content ensures superior durability, strength, and flexibility under extreme conditions. These fittings also exhibit good weldability, ease of fabrication, and resistance to thermal cycling. Stainless Steel 310 fittings are perfect for industries like petrochemical, power generation, and chemical processing, offering reliable and long-lasting solutions for demanding applications.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes are available for Stainless Steel 309S Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@machucafittings.com.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Stainless Steel 310 Pipe Fittings find extensive use in industries that need high-temperature and corrosion-resistant piping solutions. They’re commonly utilized in power plants, chemical and petrochemical processing, oil and gas, and industrial manufacturing. These fittings are perfect for pipelines that transport hot gases, steam, and aggressive fluids under high temperatures and pressures. Additionally, they are employed in furnace construction, heat exchangers, boilers, and high-temperature piping systems where thermal stability and mechanical strength are essential. With their seamless design and reliable performance, they truly meet the demands of the industry.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
