Machuca Fittings stands out as a top-notch manufacturer and supplier of Stainless Steel 347 Pipe Fittings right in the heart of Kuala Lumpur, Malaysia. They pride themselves on delivering high-quality products that are built to thrive in tough industrial settings. With their cutting-edge manufacturing skills and a commitment to international standards, Machuca Fittings ensures that their fittings are durable, precise, and reliable for the long haul. Known for their remarkable resistance to corrosion, oxidation, and high temperatures, Stainless Steel 347 Pipe Fittings are a go-to choice for various industries. Machuca Fittings is all about catering to the unique needs of sectors like oil, gas, petrochemical, marine, and power generation, guaranteeing consistent performance, timely deliveries, and happy customers around the globe.
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | 15 NB UP TO 1200 NB ; 1/8″ NB TO 48″ NB |
| Schedule | SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS. |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
These fittings are stabilized with niobium and boast a composition of 17–19% chromium, 9–13% nickel, along with trace elements of carbon, manganese, silicon, phosphorus, and sulfur. The addition of niobium enhances their resistance to intergranular corrosion, especially after being exposed to high temperatures. With a tensile strength of about 515 MPa and a yield strength of roughly 205 MPa, they also excel in creep and stress rupture properties. Their mechanical strength, toughness, and stability at elevated temperatures make them reliable in high-stress and corrosive environments.
| Grade | C | Ni | Mn | P | S | Cr | Si | Mo | N |
| 347 | 0.08 max | 9.00-13.00 | 2.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 1.0 max | – | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454°C (2650°F) | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |

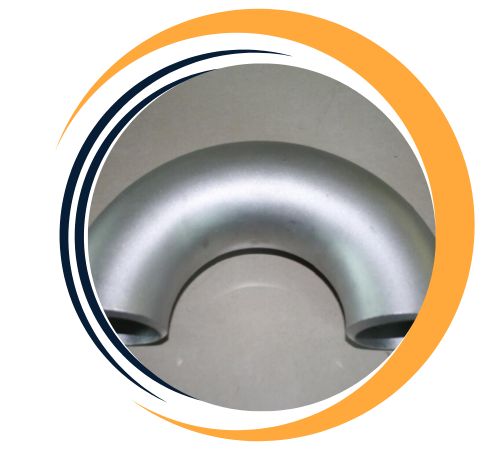

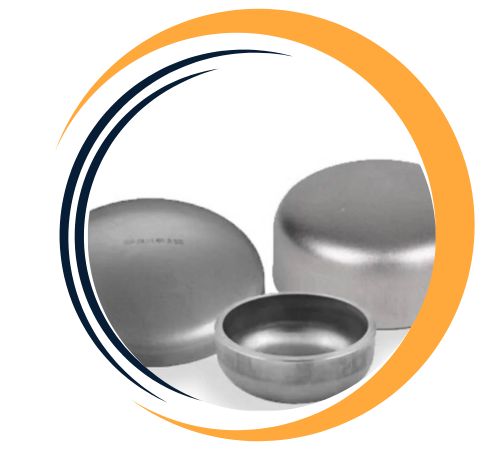

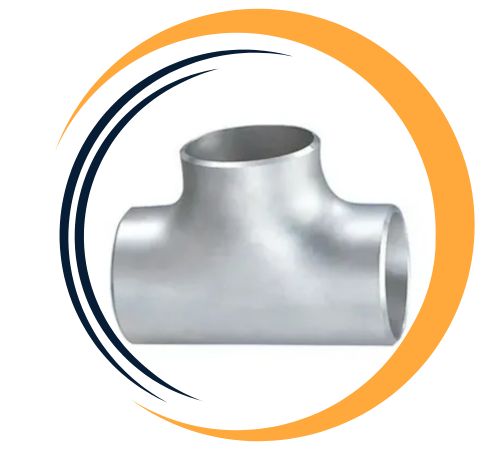

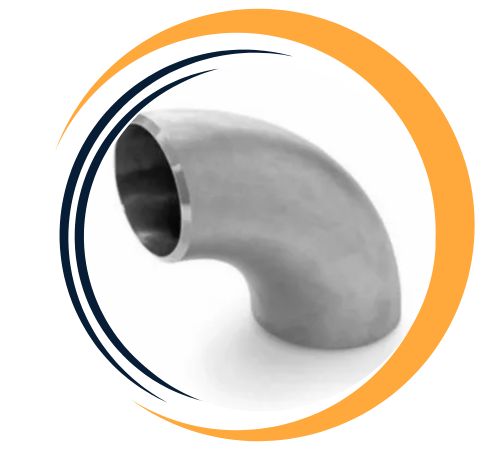

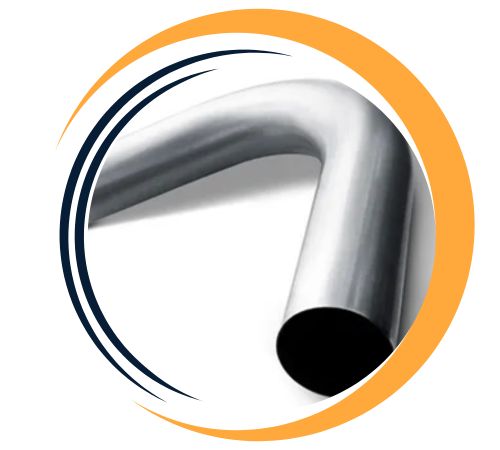

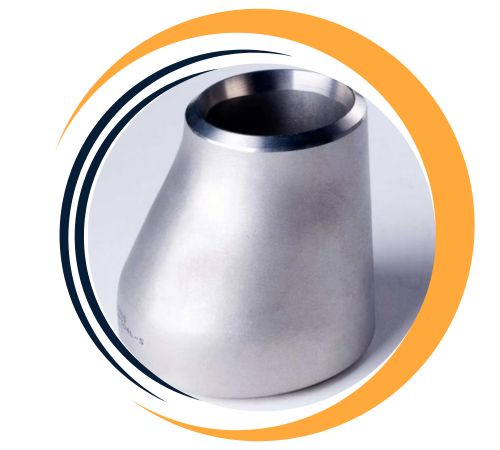

Machuca Fittings one of the largest suppliers of Stainless Steel 347 Pipe Fittings in Kuala lumpur, Malaysia. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 347 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 347 Pipe Fittings in the Malaysia.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 347 Pipe Fittings from Machuca Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
Stainless steel 347 pipe fittings offer several key benefits, making them ideal for high performance applications. Intergranular corrosion resistance, especially at elevated temperatures, is enhanced by the addition of columbium (niobium). These materials provide excellent oxidation and scaling resistance, and durability in harsh environments. They maintain strength and structural integrity at high temperatures, making them suitable for applications such as chemical processing, power generation and aerospace. In addition, stainless steel 347 fittings provide excellent weldability and formability, ensuring easy installation and maintenance under challenging industrial conditions.
Yes, custom sizes are available for Stainless Steel 347 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@machucafittings.com.
| Minimal Sizes | Outer Diam. | Caps | Straight Tee | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | Length (in) | Center to End (in) | Center to End (in) | Lap Diameter (in) | Long Length (in) | Short Length (in) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Stainless Steel 347 Pipe Fittings find their place in industries that demand exceptional corrosion resistance and stability under high temperatures. They are commonly used in petrochemical and chemical processing plants, as well as in furnace parts and heat exchanger systems where resistance to oxidation and scaling is crucial. In the power generation field, you’ll find them in boiler equipment, superheaters, and high-pressure steam lines. They also play a role in aerospace applications, such as exhaust manifolds and jet engine components, while the marine industry counts on them for their seawater resistance. Additionally, the food processing and pharmaceutical sectors utilize these fittings for their hygienic properties.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
